EXCAVATORS
0% A.P.R. for up to 60 months OR save up to $12,000 on K, KX, and U Series Excavators!
Expires 1/1/2027
U17-5
COMPACT EXCAVATORS
Call for Pricing
Special Offers
CONSTRUCTION
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $12,000 on Construction Equipment!
Expires 1/1/2027

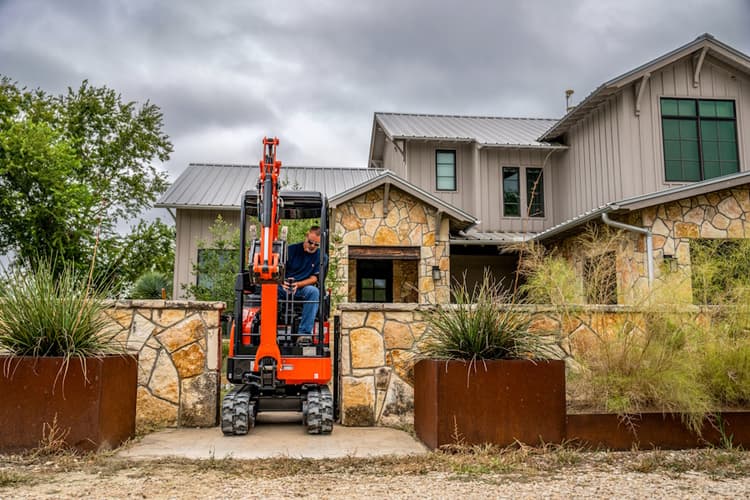

Expandable / retractable tracks and dozer blade for narrow entry access
Expandable / retractable tracks and dozer blade for narrow entry access

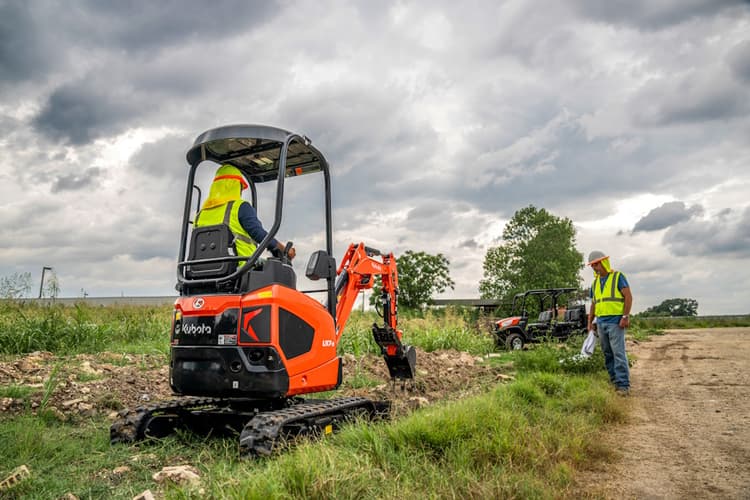

Operator monitor has been repositioned forward for easier view by the operator
Operator monitor has been repositioned forward for easier view by the operator
Auto idle feature
Auto idle feature

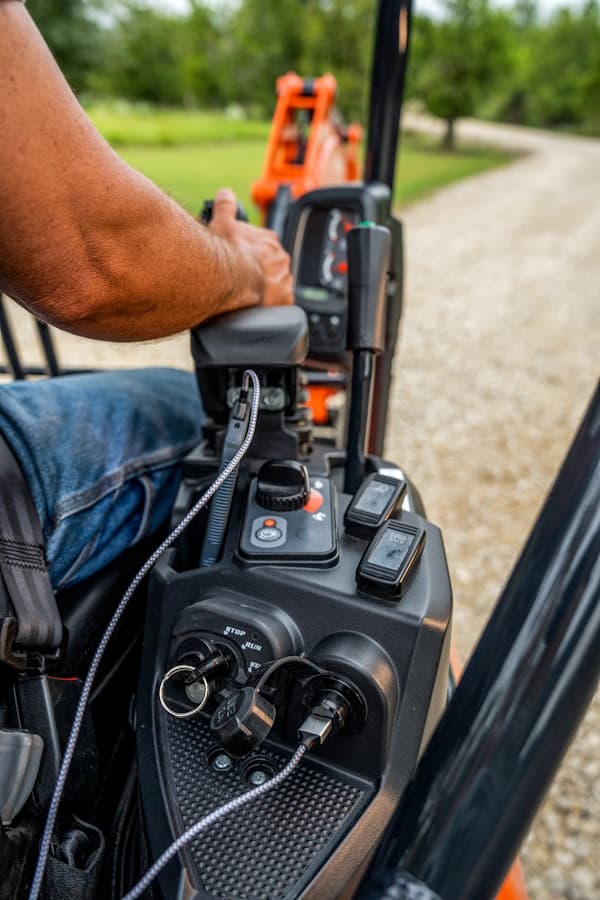

USB charging port and phone pocket
USB charging port and phone pocket

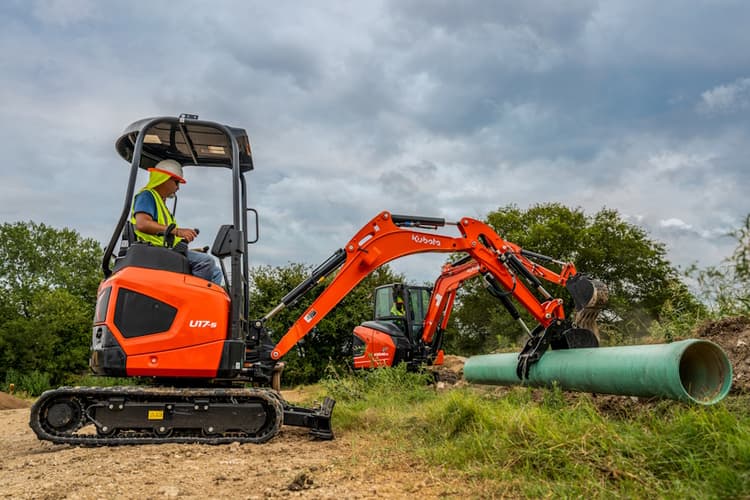

Thumb bracket
Thumb bracket

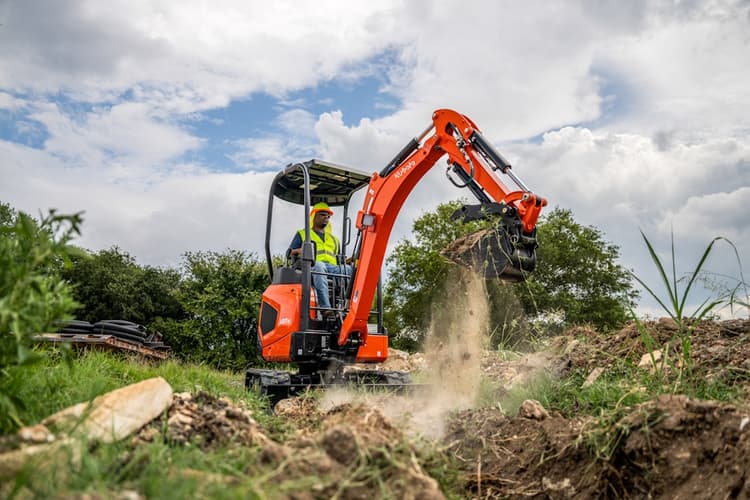

Diverter valve
Diverter valve

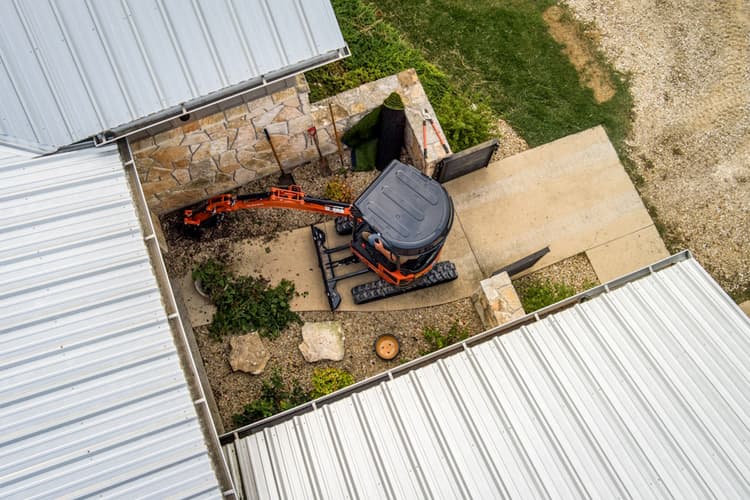

KubotaNOW telematics pre wired at factory
KubotaNOW telematics pre wired at factory

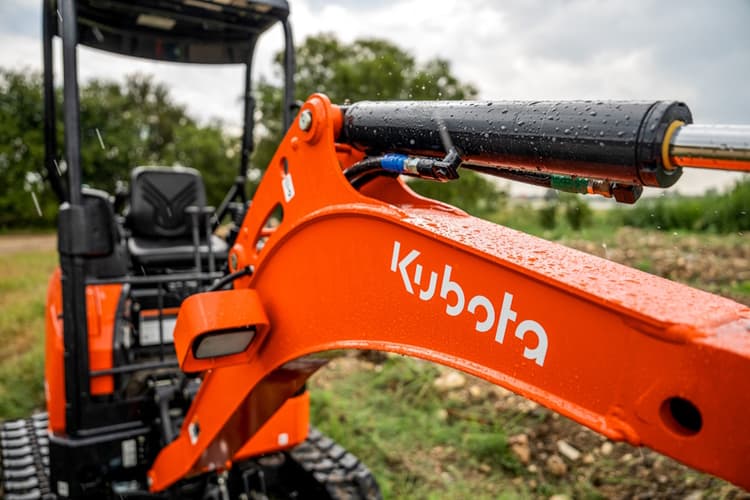

Boom mounted LED work light
Boom mounted LED work light

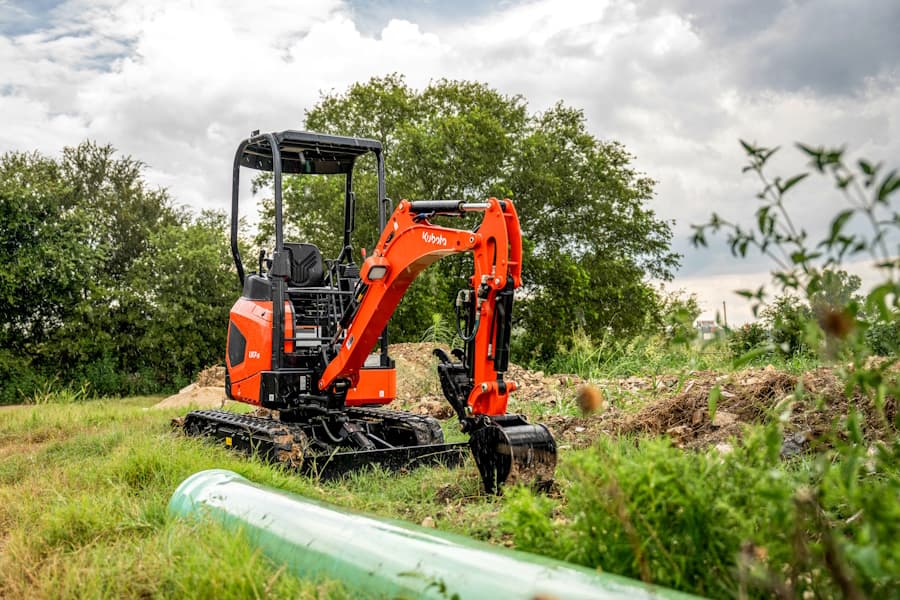

U17-5
HP
Call for Pricing
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
8.7 kN (887.2)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
7.3 (27.7)
Blade Height, in (mm)
10.2 in (260)
Blade Width, ft (mm)
4 ft 3.2 in (1300) / 3 ft 3 in (990)
Bucket Breakout Force, lbs (kgf)
15.8 kN (1609)
Crawler Length, ft (mm)
5 ft 2.2 in (1580)
Displacement (cu. in.)
54.8
Engine Model
Kubota D902-E4-BH-6EU
Fuel Reservoir, gal (l)
5.3 (13)
Ground Contact Pressure psi, kgf (cm2)
4.0 (0.29)
Horsepower (gross)
16.1
Hydraulic Oil Reservoir / System, gal (l)
3.4 (13) / 5.8 (21.8)
Min. Ground Clearance, in (mm)
6.1in (155)
Operating Weight, lbs (kg)
3902 (1770)
Overall Height, ft (mm)
7 ft 9.3 in (2370)
Overall Length, ft (mm)
11 ft 7.7 in (3550)
Overall Width, ft (mm)
3 ft 3.4 in (1000) / 4 ft 3.2 in (1300)
Pump Capacity, GPM (LPM)
4.6 (17.3)
Traveling Speed: High, mph (kph)
2.7 (4.4)
Traveling Speed: Low, mph (kph)
1.4 (2.3)
