PUMP, MAIN	Piston
PUMP, SAW	Piston
PUMP, FAN	Piston
PUMP, TRACK	(2) Piston, closed loop
PUMP, CLAMP/ACCUM.	Piston
PUMP, CHARGE/PILOT	Gear
PUMP, CASE	Gear
FILTRATION, MAIN HYDRAULICS	(5) Spin-on, 7 micron full flow (1) water absorbing
FILTRATION, CASE	(1) Spin-on, 6 micron full flow
FILTRATION, CHARGE/PILOT	(2) Spin-on, 6 micron full flow
CYLINDERS, HOIST	(2) 120 mm (4.7 in) bore
CYLINDERS, STICK/ER	(2) 110 mm (4.3 in) bore
CYLINDERS, TILT	130 mm (5.1 in) bore
HORSEPOWER CONTROL	Electric speed sensing All-speed antistall
RESERVOIR (metric)	300 L

TRACK FRAMES	R7-150 Super-duty forestry, integral track guides, ramp angles
TRACK CHAIN	FH400 215 mm (8.5 in) pitch
FINAL DRIVE	(2) Axial piston motors, Infinitely variable speed
GEARBOX	Triple reduction planetary with brake
FRONT IDLER	Hydraulic track adjuster; Spring shock absorber
ROLLERS, LOWER	(9) FH400 single/double flange excavator
TRACK SHOE	610 mm (24 in) single grouser
TRACK SHOE, Optional	710 mm (28 in) single grouser
SLIDES, UPPER	Replaceable, bolt-on

CAB	Insulated, pressurized and isolation mounted A/C, heater, defroster SkyVIEW and rearVIEW camera system Full length polycarbonate windshield/entry door Polycarbonate right and left side windows One-piece polycarbonate side door window with steel guarded upper sliding section for ventilation AM/FM digital stereo and auxiliary input port Bluetooth® audio and hands-free calling (2) power points
SEAT	Full suspension air ride, fully adjustable with angled mounting Armrest mounted Tigercat joysticks
OPERATOR CONTROLS	Hydraulic proportional for boom/travel/swing with electronic track speed control limiter Electronic for clamp arms/accumulating arms/wrist Electric switch for swing brake Electronic control system with colour LCD display screen for machine monitoring and function adjustment

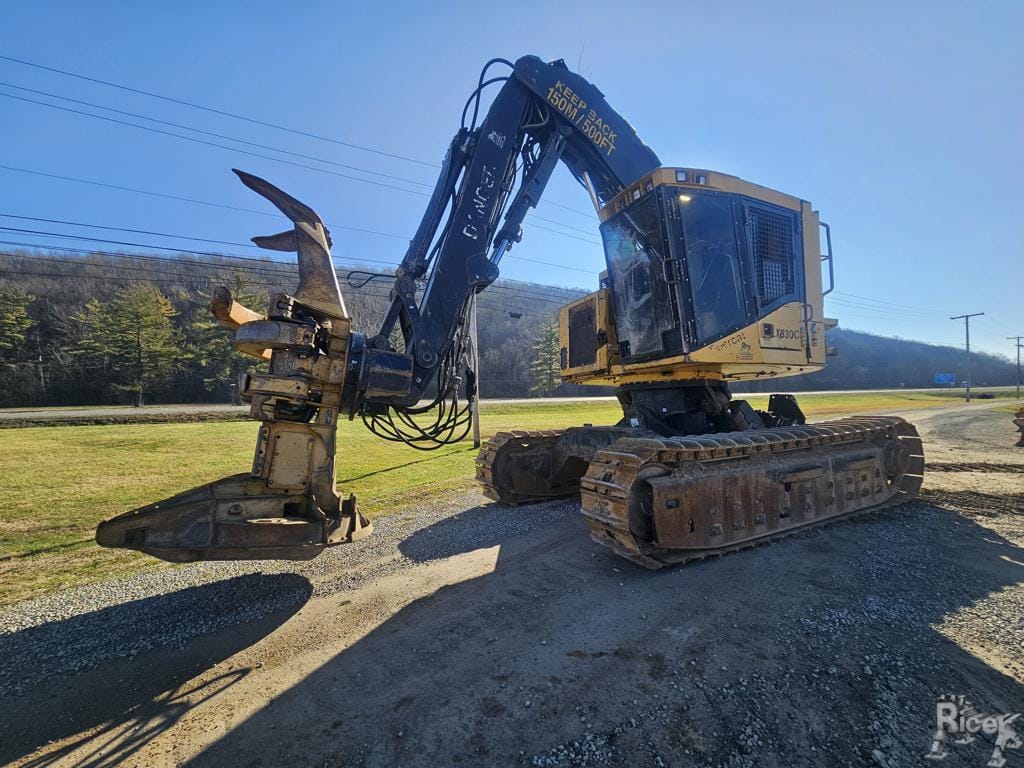

2010 Tigercat LX830C – 7652

Call for Pricing
